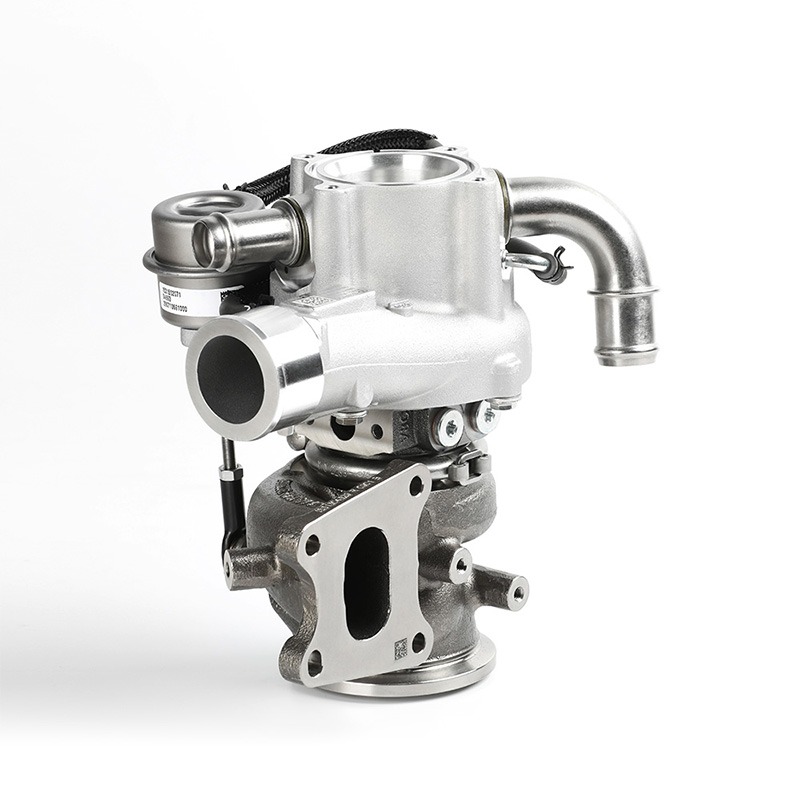

Turbocharger for Hybrid and Range-Extended Power

As hybrid vehicles incorporate electric motor drives, engine development targets have shifted toward improving thermal efficiency and reducing fuel consumption. This led to the introduction of engine technologies such as TGDI, Miller/Atkinson cycle, high compression ratio, low-pressure EGR, and low friction loss. Weifu Tianli has conducted in-depth development for hybrid engines, such as turbocharger performance matching simulation technology, efficient compressor and turbine design, high-pressu
Product Features:
· BTE thermal efficiency up to 60%
· Optional VNT products for reduce BSFC
· Impeller coating solutions for LP-EGR
Advantages:
· Self-developed impeller and turbine guide vane efficiency up to 80%
· Customizable design according to application
· Optinal ball bearings technology
Parameters:
· Applicable engine displacement: 1~3L
· Maximum pressure ratio: 4.0
· Maximum compressor efficiency: ≤80%
· Flow range (pressure ratio: 2): 0.01-0.2kg/s
· B10 lifespan: ≥500,000 kilometers
